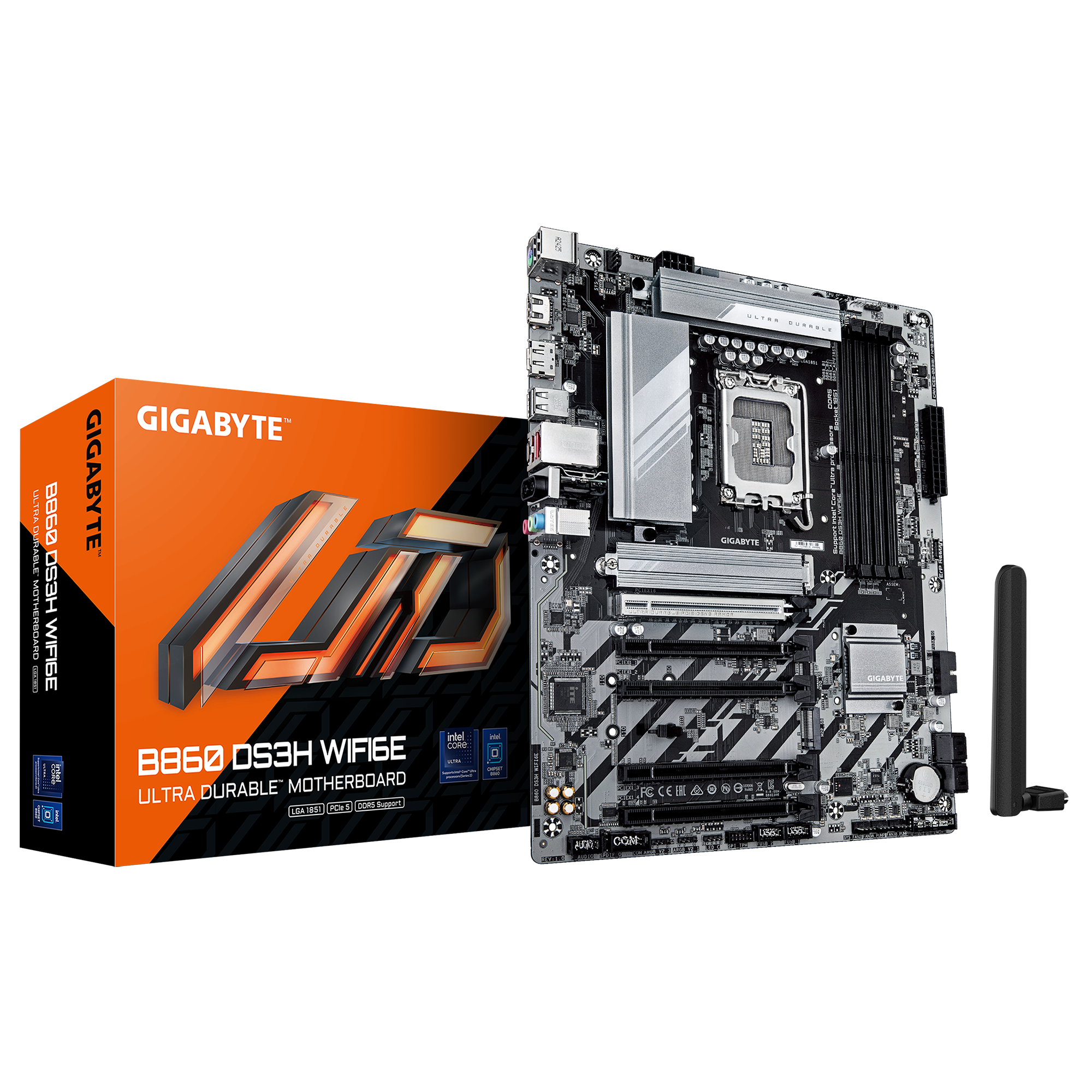

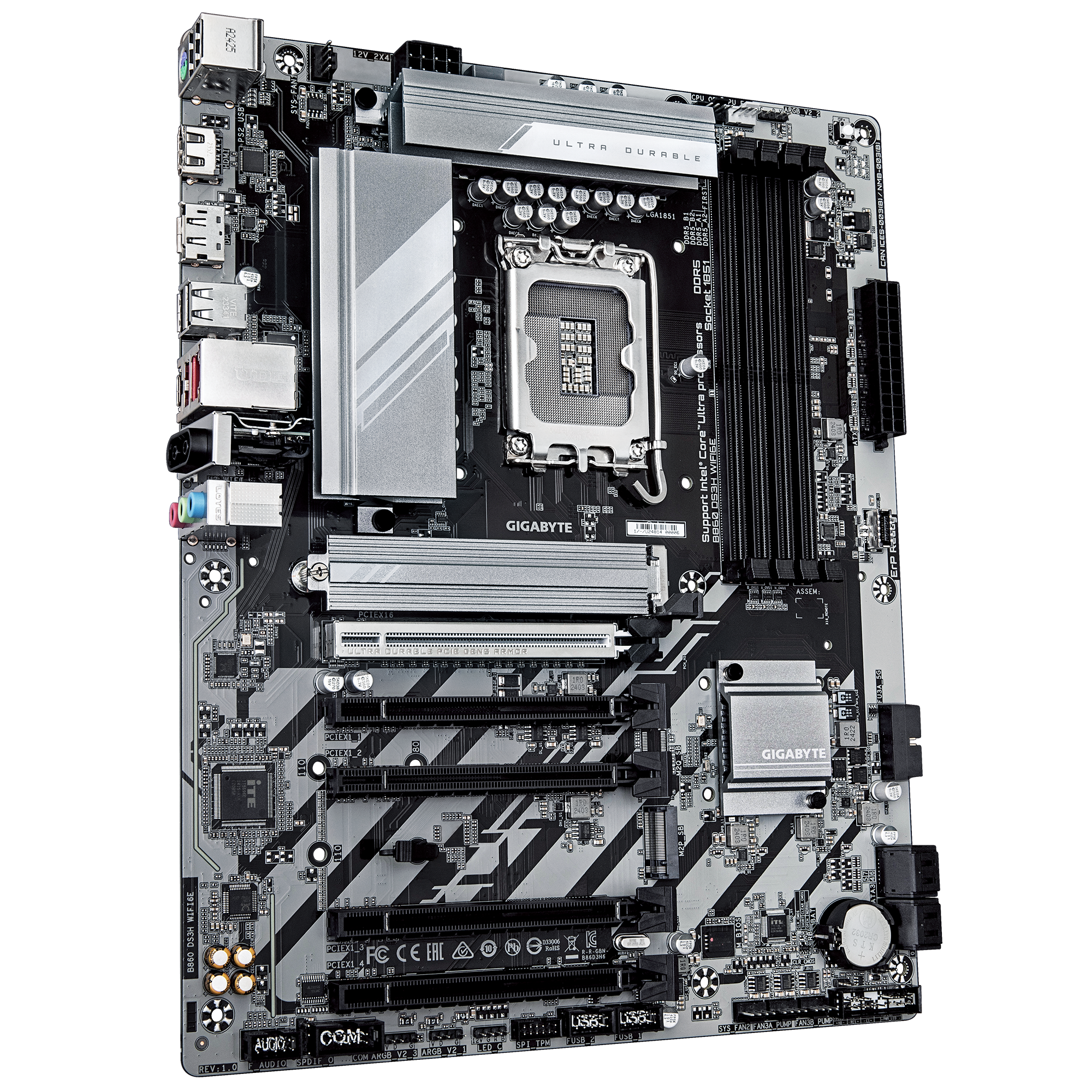

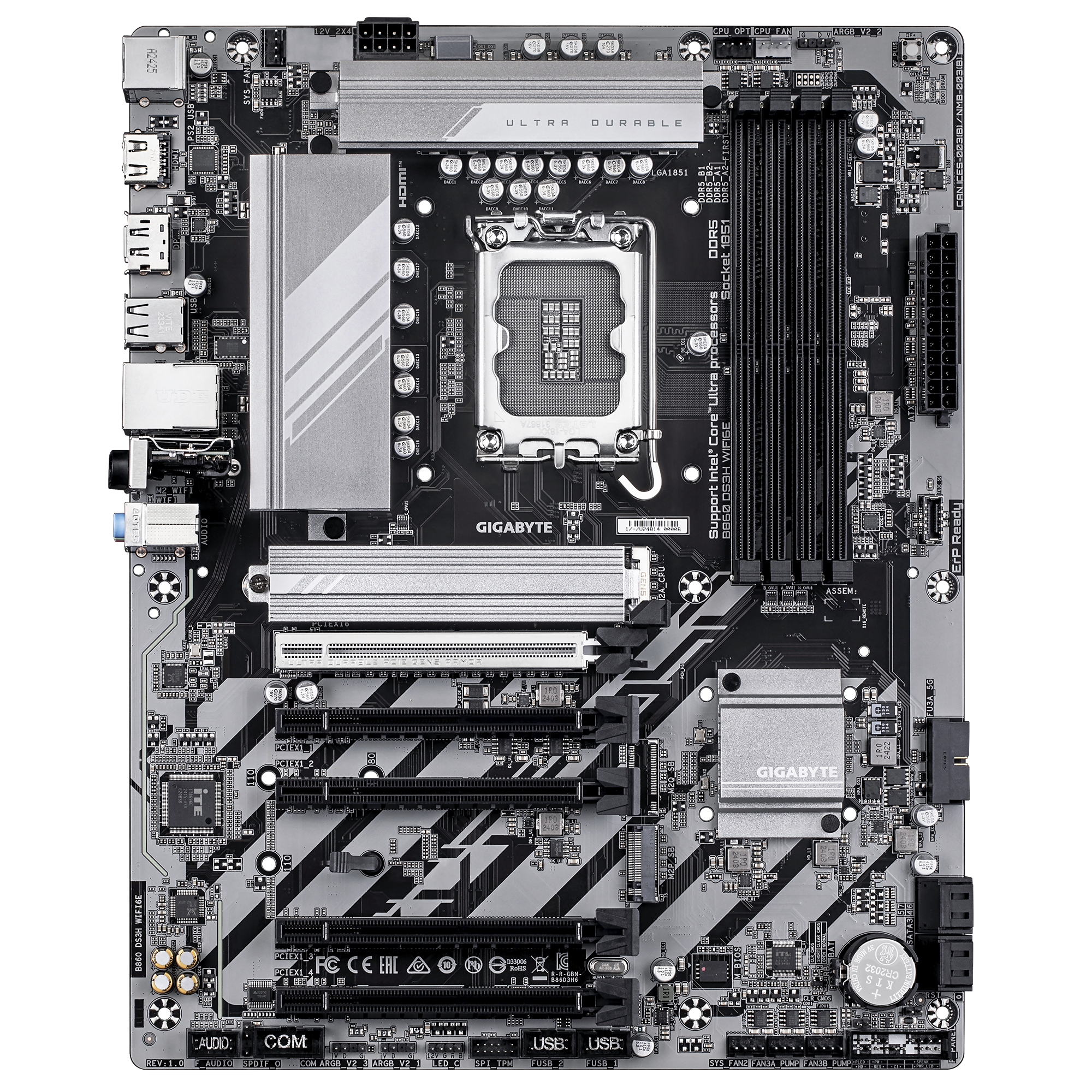

Gigabyte B860 DS3H Wi-Fi 6E | Intel LGA1851 | ATX | DDR5 | Motherboard

SKU RT-GA-B860-DS3H-WIFI6E Categories , Tag Brand:

R3,599.00

EFT Payment Price

Faster order processing and dispatch.

29 in stock

  • Delivery Info

Main Centres (JHB, PTA, DBN, CPT)

2-3 Business Days

Outlying Areas

3-7 Business Days

Description

Features:

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Hybrid 8+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • M.2 Thermal Guard : To Ensure M.2 SSD Performance
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity : DisplayPort, HDMI



CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset Intel® B860 Express Chipset
Memory Speed Support for DDR5 9066(O.C.) / 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8266(O.C.) / 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
Memory 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory Architecture Dual channel memory architecture
Memory Type (ECC) Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory Type (Non-ECC) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory Profile Support for Extreme Memory Profile (XMP) memory modules
Display Output – HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3)
Display Output – DisplayPort 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (DisplayPort 2.1)
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless (PCB rev. 1.0) Intel® Wi-Fi 6E AX211: 802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160MHz
Wireless (PCB rev. 1.1) Realtek® Wi-Fi 6E RTL8852CE: 802.11a/b/g/n/ac/ax, 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160MHz
Expansion Slot 1 1 x PCI Express x16 slot (CPU) – PCIEX16: PCIe 5.0 x16
Expansion Slots 2-5 4 x PCI Express x16 slots (Chipset) – PCIEX1_1 to PCIEX1_4: PCIe 4.0 x1
Storage – M.2 (M2A_CPU) 1 x M.2 connector (CPU), Socket 3, M key, type 25110/22110/2580/2280: PCIe 5.0 x4/x2 SSDs
Storage – M.2 (M2P_SB) 1 x M.2 connector (Chipset), Socket 3, M key, type 25110/22110/2580/2280: PCIe 4.0 x4/x2 SSDs
Storage – SATA 4 x SATA 6Gb/s connectors
Storage – RAID (SATA) RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB – Back Panel (Chipset) 1 x USB Type-C® port (USB 3.2 Gen 2×2), 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 2.0/1.1 ports
USB – Internal (Chipset) 1 x USB Type-C® port with USB 3.2 Gen 1 support via internal USB header, 2 x USB 3.2 Gen 1 ports via internal USB header
USB – Internal (Chipset + Hub) 4 x USB 2.0/1.1 ports via internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 2 x system fan headers, 2 x system fan/water cooling pump headers, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM header (GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

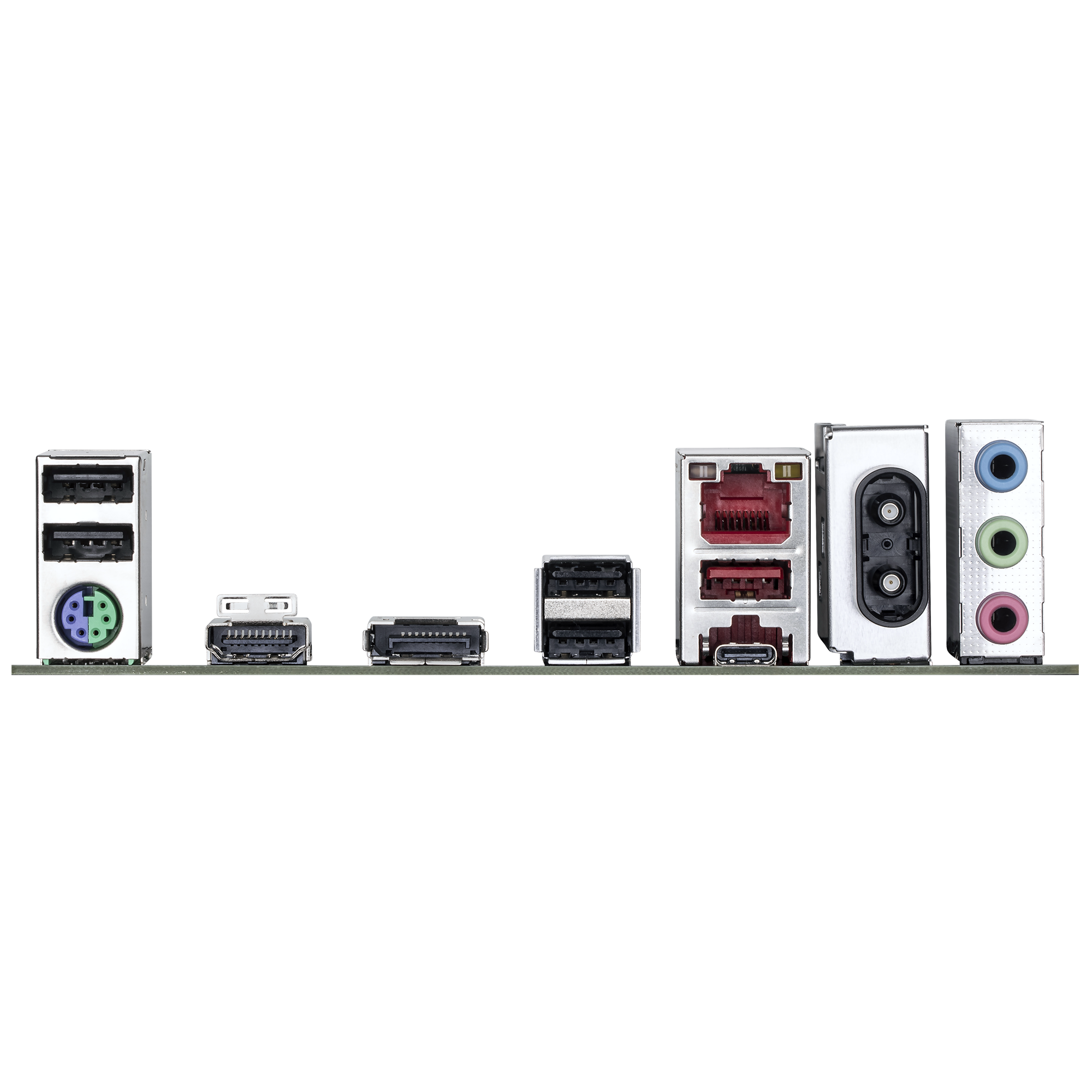

Back Panel Connectors 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x DisplayPort, 1 x USB Type-C® port (USB 3.2 Gen 2×2), 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS 1 x 256 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor ATX; 30.5cm x 24.4cm

Additional information

Motherboard Chipset

B860
Motherboard Form Factor

ATX
Motherboard Memory Support

DDR5
Motherboard Platform

Intel
Motherboard Socket

LGA1851
